For the exhibition design project we all presented our individual designs and the clients decided that they wanted my materials and connections, and my course mate Chloe’s design. We worked together to unite our designs and were co-leaders for the project.
The whole class worked together to develop our design and build the exhibition. Chloe and I managed the process and had the final vote. We got as far as to build our first prototype before the degree show unfortunately got cancelled and lockdown began. We did finish the design, but never got to build it.
The whole class worked together to develop our design and build the exhibition. Chloe and I managed the process and had the final vote. We got as far as to build our first prototype before the degree show unfortunately got cancelled and lockdown began. We did finish the design, but never got to build it.

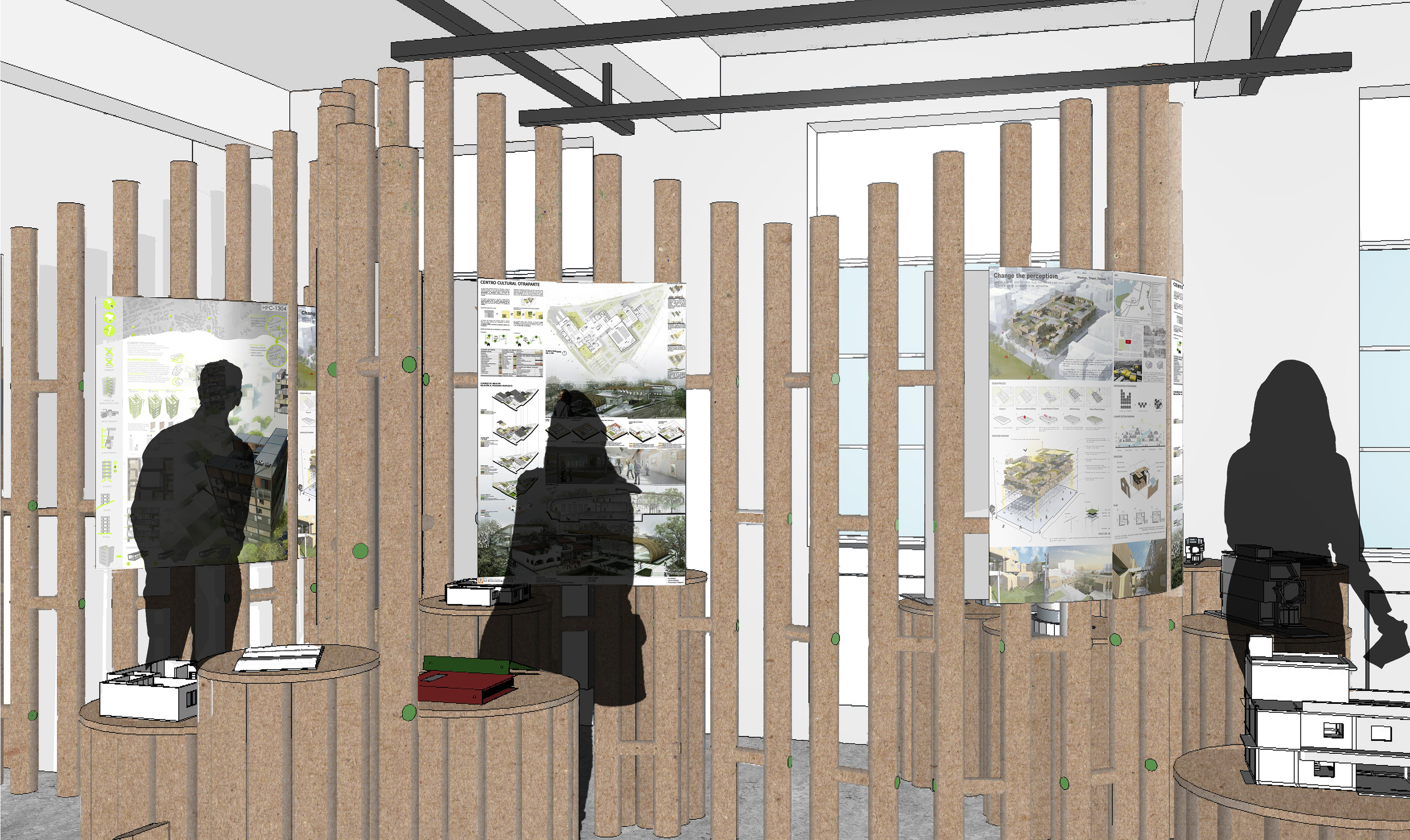

The initial design

Measuring out the size of a stand

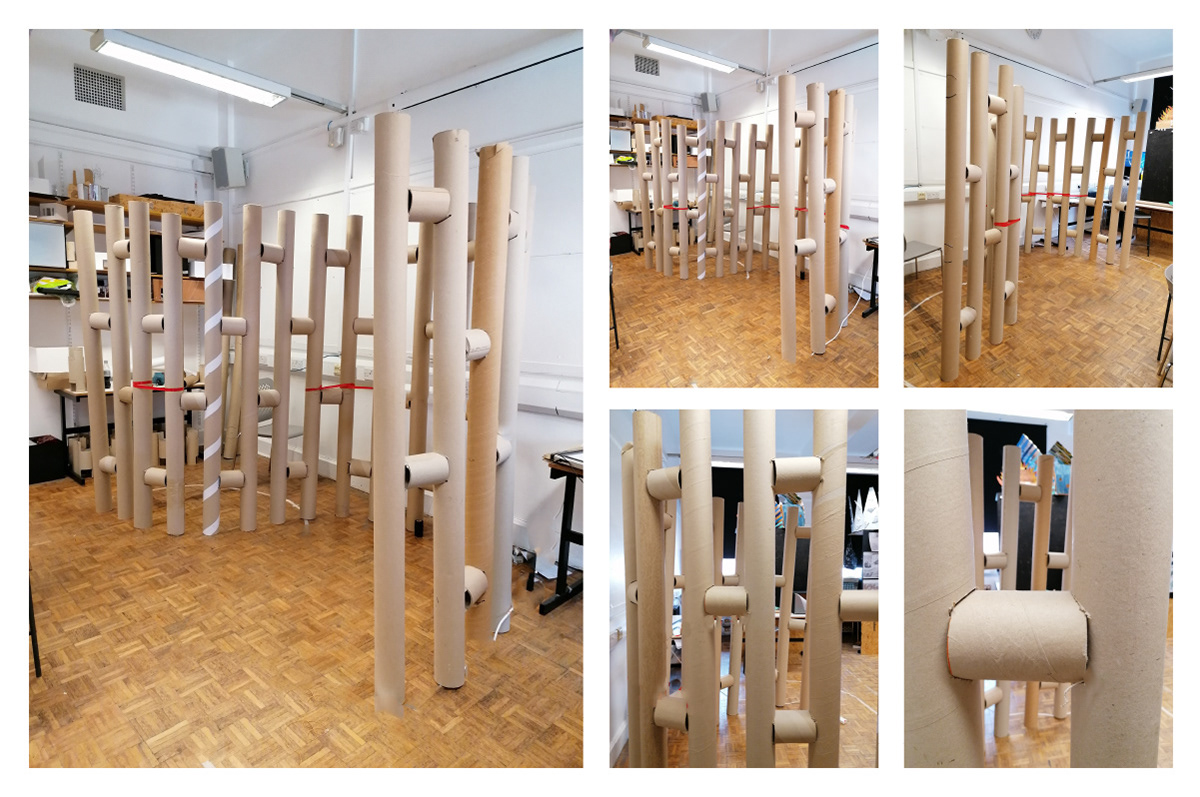

For our first client meeting we constructed a 1:1 prototype to demonstrate scale and room feeling

Our production team working on the prototype

Plan of exhibition area

Section view

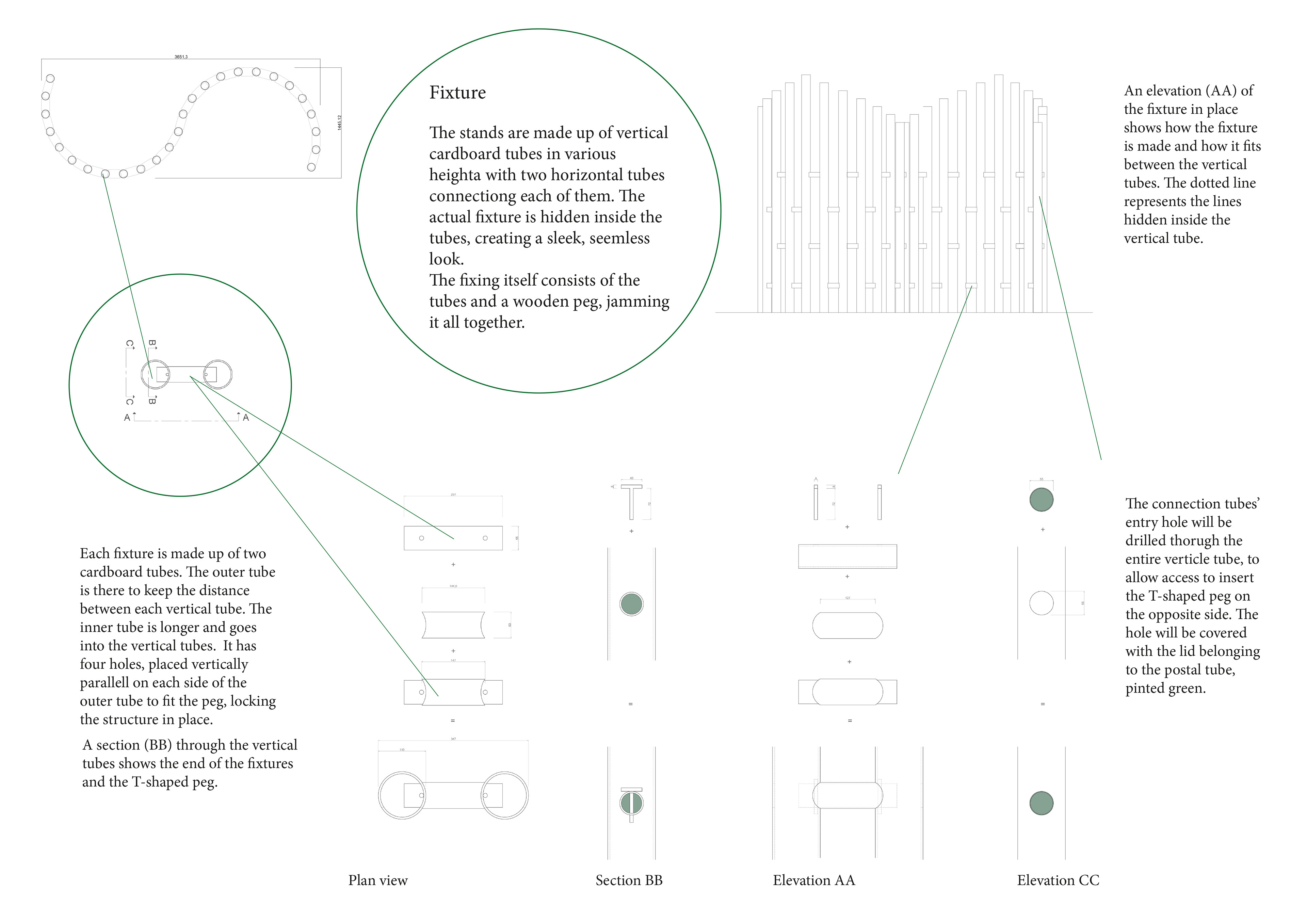

The fixture went through multiple phases of trying different solutions, this was our final design.

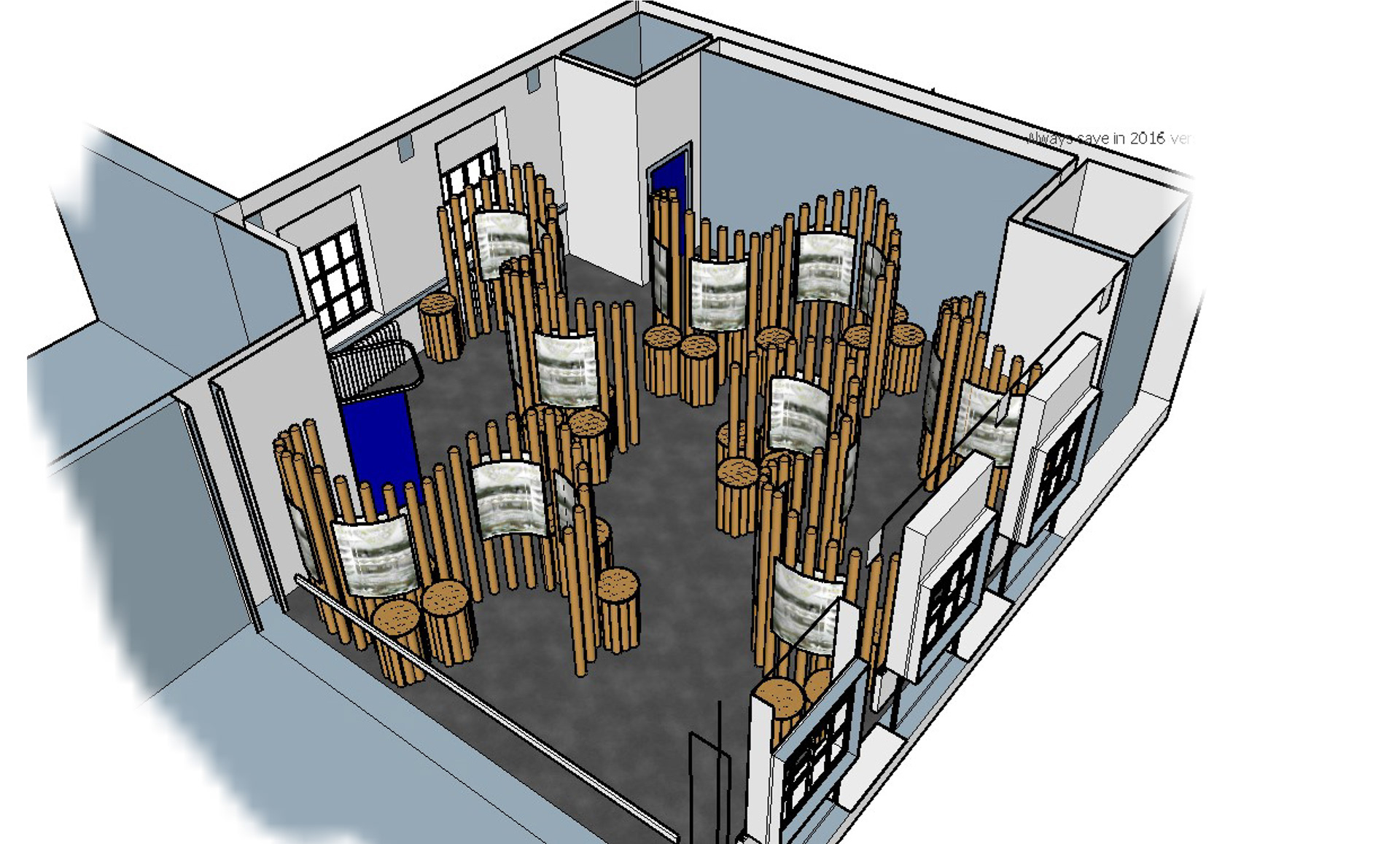

Isometric view of exhibition area


The final stand
